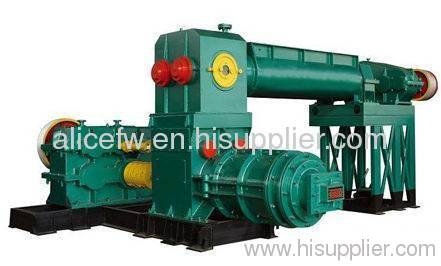

Product Description
1. It is suitble for producing all kinds of hollow bricks and solid bricks with the materialsof clay, coal gangue, shale, high volume fly ash, urban construction waste, mine wastes and inferior soil. 2. With all-steel construction, integrating the advanced technology of domestic and foreign vacuum extruder, the machine has the features of reasonable design, compact structure, strong adaptability (installation is optional), high extrusive pressure, low energy consumption, high yield, easy operation and maintainence, steady running, and long working life,etc. And it is the ideal brick making equipment for some medium or small factories and power restricted areas. 3. Double stage vacuum brick machine, together with the roller screen, box feeder, high-speed roller crusher, belt conveyor, automatic cutting machine, double-shaft mixer and automatic brick stacking machine, etc, composes the entire brick making production line.

Product Feature
1. The spiral reamer adopts wear-resistance metal spray painting technology; 2. The upper stage mixing shaft, the reamer shaft, and the body of the machine are all passed the aging, quenching and tempering process; 3. The reducer gearwheel is with hard gear surface. 4. The clutch adopts the spiral pressure plate patent technology, which largely prolonged the service life of the equipment. (By adopting the pneumatic clutch, the machine is sensitive, convenient, and reliable.) 5. At the same time, with reasonable design and compact structure, the equipment can work steadily without installing foundation bolts. And It can greatly reduce the power consumption for vibration in the equipment,'s operating process.

Product Specification/Models
JZK60/60-4.0

Application
It applies to produce all kinds of hollow bricks and solid bricks with the materialsof clay, coal gangue, shale, high volume fly ash, urban construction waste, mine wastes and inferior soil.

Other Information
Technical parameters: Production capacity(pcs/h): 18000-24000; Molding moisture: 14-18%; Rimer diameter(mm): 600: Speed of Principal aixs rotate: 23-25 r/min; Matched power: Superior:Y250M-4-90KW, Subordinate: Y315S-6-180KW : Overall dimension: 7500 X 3800 X 2580mm.
